org::xmlBlaster::util::queue::SQLiteQueuePlugin Class Reference

Implements a persistent queue using SQLite as a base. More...

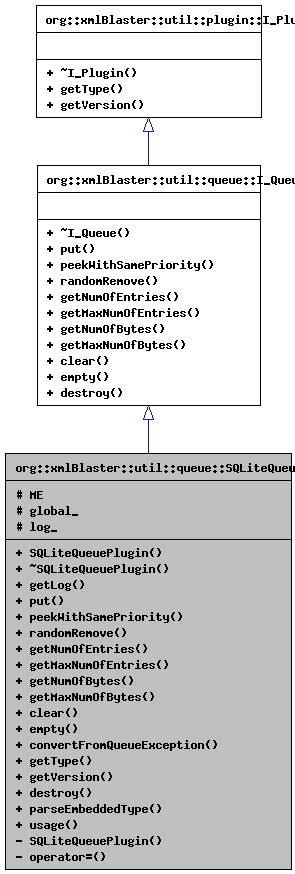

Inheritance diagram for org::xmlBlaster::util::queue::SQLiteQueuePlugin:

Inheritance graph
[legend]

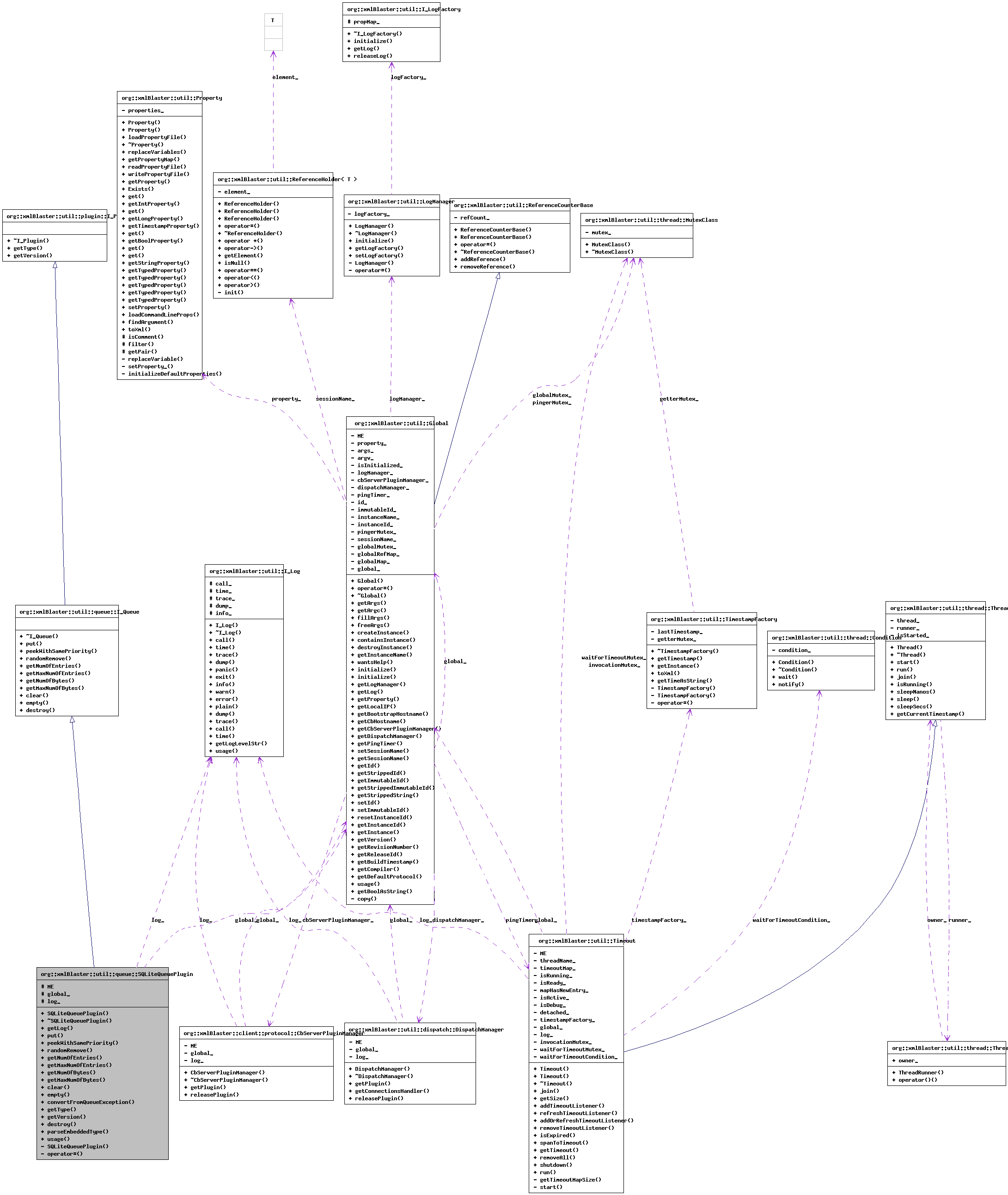

Collaboration diagram for org::xmlBlaster::util::queue::SQLiteQueuePlugin:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 SQLiteQueuePlugin (org::xmlBlaster::util::Global &global, org::xmlBlaster::util::qos::storage::ClientQueueProperty &property)
virtual ~SQLiteQueuePlugin ()
 Shutdown the queue, keep existing entries.
org::xmlBlaster::util::I_LoggetLog ()
 Access logging framework.
void put (MsgQueueEntry &entry)
 puts a new entry into the queue.
std::vector< EntryTypepeekWithSamePriority (long maxNumOfEntries=-1, long maxNumOfBytes=-1)
 Returns the entries with the highest priority in the queue.
long randomRemove (std::vector< EntryType >::const_iterator &start, std::vector< EntryType >::const_iterator &end)
 Deletes the entries specified in the std::vector in the argument list.
long getNumOfEntries ()
 Access the current number of entries.
long getMaxNumOfEntries ()
 Access the configured maximum number of elements for this queue.
int64_t getNumOfBytes ()
 Returns the amount of bytes currently in the queue.
int64_t getMaxNumOfBytes ()
 Access the configured capacity (maximum bytes) for this queue.
void clear ()
 Clears (removes all entries) this queue.
bool empty ()
 returns true if the queue is empty, false otherwise
org::xmlBlaster::util::XmlBlasterException convertFromQueueException (::ExceptionStruct *ex)
 Converts the C ExceptionStruct into our XmlBlasterException class.
std::string getType ()
 Get the name of the plugin.
std::string getVersion ()
 Get the version of the plugin.
void destroy ()
 Removes all entries and cleans up the storage, for example with a database it would remove all tables and relating database files.

Static Public Member Functions

static void parseEmbeddedType (std::string &embeddedType, std::string &type, std::string &methodName)
 Parse the embedded type information.
static std::string usage ()

Protected Attributes

std::string ME
org::xmlBlaster::util::Globalglobal_
org::xmlBlaster::util::I_Loglog_

Properties

org::xmlBlaster::util::qos::storage::QueuePropertyBase _
::I_QueueStructqueueP_
org::xmlBlaster::util::qos::ConnectQosFactory connectQosFactory_
org::xmlBlaster::util::qos::StatusQosFactory statusQosFactory_
org::xmlBlaster::util::key::MsgKeyFactory msgKeyFactory_
org::xmlBlaster::util::qos::MsgQosFactory msgQosFactory_
org::xmlBlaster::util::thread::Mutex accessMutex_

Detailed Description

Implements a persistent queue using SQLite as a base.

This class wraps the ANSI C based persistent queue implementation xmlBlaster/src/c/util/queue/SQLiteQueue.c.

See also:
The embedded SQLite SQL database

The client.c.queue requirement

The client.cpp.queue requirement

Author:
Marcel Ruff

Definition at line 36 of file SQLiteQueuePlugin.h.


Constructor & Destructor Documentation

org::xmlBlaster::util::queue::SQLiteQueuePlugin::SQLiteQueuePlugin ( org::xmlBlaster::util::Global global,
org::xmlBlaster::util::qos::storage::ClientQueueProperty property
)

Definition at line 38 of file SQLiteQueuePlugin.cpp.

References org::xmlBlaster::util::I_Log::call(), convertFromQueueException(), createQueue(), org::xmlBlaster::util::Property::get(), org::xmlBlaster::util::qos::storage::QueuePropertyBase::getMaxEntries(), org::xmlBlaster::util::Global::getProperty(), org::xmlBlaster::util::Global::getStrippedImmutableId(), getType(), getVersion(), global_, org::xmlBlaster::util::I_Log::info(), log_, ME, QUEUE_DBNAME_MAX, QUEUE_ID_MAX, QUEUE_PREFIX_MAX, queueP_, org::xmlBlaster::util::I_Log::trace(), and org::xmlBlaster::util::I_Log::warn().

org::xmlBlaster::util::queue::SQLiteQueuePlugin::~SQLiteQueuePlugin (  )  [virtual]

Shutdown the queue, keep existing entries.

Definition at line 126 of file SQLiteQueuePlugin.cpp.

References accessMutex_, org::xmlBlaster::util::I_Log::call(), log_, ME, queueP_, I_QueueStruct::shutdown, and org::xmlBlaster::util::I_Log::warn().


Member Function Documentation

org::xmlBlaster::util::I_Log& org::xmlBlaster::util::queue::SQLiteQueuePlugin::getLog (  )

Access logging framework.

Definition at line 65 of file SQLiteQueuePlugin.h.

void org::xmlBlaster::util::queue::SQLiteQueuePlugin::put ( MsgQueueEntry entry  )  [virtual]

puts a new entry into the queue.

Note that this method takes the entry pointed to by the argument and puts a reference to it into the queue. This means that you can not destroy the entry before the reference to it has been removed from the queue (which normally happens on a remove or when destroying the queue.

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 141 of file SQLiteQueuePlugin.cpp.

References accessMutex_, org::xmlBlaster::util::I_Log::call(), convertFromQueueException(), org::xmlBlaster::util::queue::BlobHolder::data, org::xmlBlaster::util::queue::BlobHolder::dataLen, org::xmlBlaster::util::I_Log::dump(), org::xmlBlaster::util::queue::MsgQueueEntry::getEmbeddedObject(), org::xmlBlaster::util::queue::MsgQueueEntry::getEmbeddedType(), org::xmlBlaster::util::queue::MsgQueueEntry::getLogId(), org::xmlBlaster::util::queue::MsgQueueEntry::getPriority(), org::xmlBlaster::util::queue::MsgQueueEntry::getSizeInBytes(), org::xmlBlaster::util::queue::MsgQueueEntry::getUniqueId(), org::xmlBlaster::util::INTERNAL_ILLEGALARGUMENT, org::xmlBlaster::util::queue::MsgQueueEntry::isPersistent(), log_, ME, I_QueueStruct::put, QUEUE_ENTRY_EMBEDDEDTYPE_LEN, queueP_, org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE, and org::xmlBlaster::util::queue::MsgQueueEntry::toXml().

vector< EntryType > org::xmlBlaster::util::queue::SQLiteQueuePlugin::peekWithSamePriority ( long  maxNumOfEntries = -1,
long  maxNumOfBytes = -1
) [virtual]

Returns the entries with the highest priority in the queue.

If 'maxNumOfEntries' is positive, this is the maximum number of entries to return. If maxNumOfBytes is positive, only the entries which fit into the range specified are returned. If there are no such entries, an empty std::vector is returned.

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 181 of file SQLiteQueuePlugin.cpp.

References accessMutex_, org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::MethodName::CONNECT, connectQosFactory_, convertFromQueueException(), org::xmlBlaster::util::I_Log::dump(), I_QueueStruct::empty, org::xmlBlaster::util::Constants::ENTRY_TYPE_MSG_RAW, org::xmlBlaster::util::I_Log::error(), freeQueueEntryArr(), global_, org::xmlBlaster::util::INTERNAL_UNKNOWN, log_, ME, msgKeyFactory_, msgQosFactory_, parseEmbeddedType(), I_QueueStruct::peekWithSamePriority, org::xmlBlaster::util::MethodName::PUBLISH, queueP_, org::xmlBlaster::util::qos::ConnectQosFactory::readObject(), org::xmlBlaster::util::qos::MsgQosFactory::readObject(), org::xmlBlaster::util::key::MsgKeyFactory::readObject(), org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE, and org::xmlBlaster::util::I_Log::trace().

long org::xmlBlaster::util::queue::SQLiteQueuePlugin::randomRemove ( std::vector< EntryType >::const_iterator &  start,
std::vector< EntryType >::const_iterator &  end
) [virtual]

Deletes the entries specified in the std::vector in the argument list.

If this std::vector is empty or if the queue is empty, zero (0) is returned, otherwise it returns the number of entries really deleted.

Implements org::xmlBlaster::util::queue::I_Queue.

long org::xmlBlaster::util::queue::SQLiteQueuePlugin::getNumOfEntries (  )  [virtual]

Access the current number of entries.

Returns:
The number of entries in the queue

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 334 of file SQLiteQueuePlugin.cpp.

References I_QueueStruct::getNumOfEntries, ME, queueP_, and org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE.

long org::xmlBlaster::util::queue::SQLiteQueuePlugin::getMaxNumOfEntries (  )  [virtual]

Access the configured maximum number of elements for this queue.

Returns:
The maximum number of elements in the queue

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 340 of file SQLiteQueuePlugin.cpp.

References I_QueueStruct::getMaxNumOfEntries, and queueP_.

int64_t org::xmlBlaster::util::queue::SQLiteQueuePlugin::getNumOfBytes (  )  [virtual]

Returns the amount of bytes currently in the queue.

If the implementation of this interface is not able to return the correct number of entries (for example if the implementation must make a remote call to a DB which is temporarly not available) it will return -1.

Returns:
The amount of bytes currently in the queue, returns -1 on error

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 346 of file SQLiteQueuePlugin.cpp.

References I_QueueStruct::getNumOfBytes, ME, queueP_, and org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE.

int64_t org::xmlBlaster::util::queue::SQLiteQueuePlugin::getMaxNumOfBytes (  )  [virtual]

Access the configured capacity (maximum bytes) for this queue.

Returns:
The maximum capacity for the queue in bytes

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 352 of file SQLiteQueuePlugin.cpp.

References I_QueueStruct::getMaxNumOfBytes, and queueP_.

void org::xmlBlaster::util::queue::SQLiteQueuePlugin::clear (  )  [virtual]

Clears (removes all entries) this queue.

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 358 of file SQLiteQueuePlugin.cpp.

References accessMutex_, I_QueueStruct::clear, ME, queueP_, and org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE.

int org::xmlBlaster::util::queue::SQLiteQueuePlugin::empty (  )  [virtual]

returns true if the queue is empty, false otherwise

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 367 of file SQLiteQueuePlugin.cpp.

References I_QueueStruct::empty, ME, queueP_, and org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE.

org::xmlBlaster::util::XmlBlasterException org::xmlBlaster::util::queue::SQLiteQueuePlugin::convertFromQueueException ( ::ExceptionStruct *  ex  )

Converts the C ExceptionStruct into our XmlBlasterException class.

Definition at line 382 of file SQLiteQueuePlugin.cpp.

References org::xmlBlaster::util::Global::getBuildTimestamp(), org::xmlBlaster::util::Global::getVersion(), global_, and ME.

Referenced by destroy(), peekWithSamePriority(), put(), and SQLiteQueuePlugin().

static void org::xmlBlaster::util::queue::SQLiteQueuePlugin::parseEmbeddedType ( std::string &  embeddedType,
std::string &  type,
std::string &  methodName
) [static]

Parse the embedded type information.

Parameters:
embeddedType The input, for example "MSG_RAW|publish"
type Output: "MSG_RAW" (the SOCKET serialization format)
methodName Output: "publish" (see MethodName.cpp)

Referenced by peekWithSamePriority().

string org::xmlBlaster::util::queue::SQLiteQueuePlugin::usage (  )  [static]

Definition at line 393 of file SQLiteQueuePlugin.cpp.

References org::xmlBlaster::util::qos::storage::ClientQueueProperty::usage().

Referenced by org::xmlBlaster::util::queue::CacheQueuePlugin::usage().

std::string org::xmlBlaster::util::queue::SQLiteQueuePlugin::getType (  )  [virtual]

Get the name of the plugin.

Returns:
"SQLite" I_Plugin

Implements org::xmlBlaster::util::plugin::I_Plugin.

Definition at line 147 of file SQLiteQueuePlugin.h.

Referenced by SQLiteQueuePlugin().

std::string org::xmlBlaster::util::queue::SQLiteQueuePlugin::getVersion (  )  [virtual]

Get the version of the plugin.

Returns:
"1.0" I_Plugin

Implements org::xmlBlaster::util::plugin::I_Plugin.

Definition at line 154 of file SQLiteQueuePlugin.h.

Referenced by SQLiteQueuePlugin().

void org::xmlBlaster::util::queue::SQLiteQueuePlugin::destroy (  )  [virtual]

Removes all entries and cleans up the storage, for example with a database it would remove all tables and relating database files.

This is an administrative task. The class instance calling destroy() is invalid after this call

Exceptions:
XmlBlasterException if failed

Implements org::xmlBlaster::util::queue::I_Queue.

Definition at line 373 of file SQLiteQueuePlugin.cpp.

References convertFromQueueException(), I_QueueStruct::destroy, ME, queueP_, and org::xmlBlaster::util::RESOURCE_DB_UNAVAILABLE.


Member Data Documentation

std::string org::xmlBlaster::util::queue::SQLiteQueuePlugin::ME [protected]

Definition at line 43 of file SQLiteQueuePlugin.h.

Referenced by clear(), convertFromQueueException(), destroy(), empty(), getNumOfBytes(), getNumOfEntries(), peekWithSamePriority(), put(), SQLiteQueuePlugin(), and ~SQLiteQueuePlugin().

org::xmlBlaster::util::Global& org::xmlBlaster::util::queue::SQLiteQueuePlugin::global_ [protected]

Definition at line 44 of file SQLiteQueuePlugin.h.

Referenced by convertFromQueueException(), peekWithSamePriority(), and SQLiteQueuePlugin().

org::xmlBlaster::util::I_Log& org::xmlBlaster::util::queue::SQLiteQueuePlugin::log_ [protected]

Definition at line 45 of file SQLiteQueuePlugin.h.

Referenced by peekWithSamePriority(), put(), SQLiteQueuePlugin(), and ~SQLiteQueuePlugin().


Property Documentation

org::xmlBlaster::util::qos::storage::QueuePropertyBase org::xmlBlaster::util::queue::SQLiteQueuePlugin::_ [protected]

Definition at line 46 of file SQLiteQueuePlugin.h.

struct ::I_QueueStruct* org::xmlBlaster::util::queue::SQLiteQueuePlugin::queueP_ [protected]

Definition at line 47 of file SQLiteQueuePlugin.h.

Referenced by clear(), destroy(), empty(), getMaxNumOfBytes(), getMaxNumOfEntries(), getNumOfBytes(), getNumOfEntries(), peekWithSamePriority(), put(), SQLiteQueuePlugin(), and ~SQLiteQueuePlugin().

org::xmlBlaster::util::qos::ConnectQosFactory org::xmlBlaster::util::queue::SQLiteQueuePlugin::connectQosFactory_ [mutable, protected]

Definition at line 48 of file SQLiteQueuePlugin.h.

Referenced by peekWithSamePriority().

org::xmlBlaster::util::qos::StatusQosFactory org::xmlBlaster::util::queue::SQLiteQueuePlugin::statusQosFactory_ [mutable, protected]

Definition at line 49 of file SQLiteQueuePlugin.h.

org::xmlBlaster::util::key::MsgKeyFactory org::xmlBlaster::util::queue::SQLiteQueuePlugin::msgKeyFactory_ [mutable, protected]

Definition at line 50 of file SQLiteQueuePlugin.h.

Referenced by peekWithSamePriority().

org::xmlBlaster::util::qos::MsgQosFactory org::xmlBlaster::util::queue::SQLiteQueuePlugin::msgQosFactory_ [mutable, protected]

Definition at line 51 of file SQLiteQueuePlugin.h.

Referenced by peekWithSamePriority().

org::xmlBlaster::util::thread::Mutex org::xmlBlaster::util::queue::SQLiteQueuePlugin::accessMutex_ [protected]

Definition at line 52 of file SQLiteQueuePlugin.h.

Referenced by clear(), peekWithSamePriority(), put(), and ~SQLiteQueuePlugin().


The documentation for this class was generated from the following files:
