org::xmlBlaster::util::key::KeyData

org::xmlBlaster::util::key::KeyData Class Reference

This class encapsulates the Message meta data and unique identifier (key) of a publish()/update() or get()-return message. More...

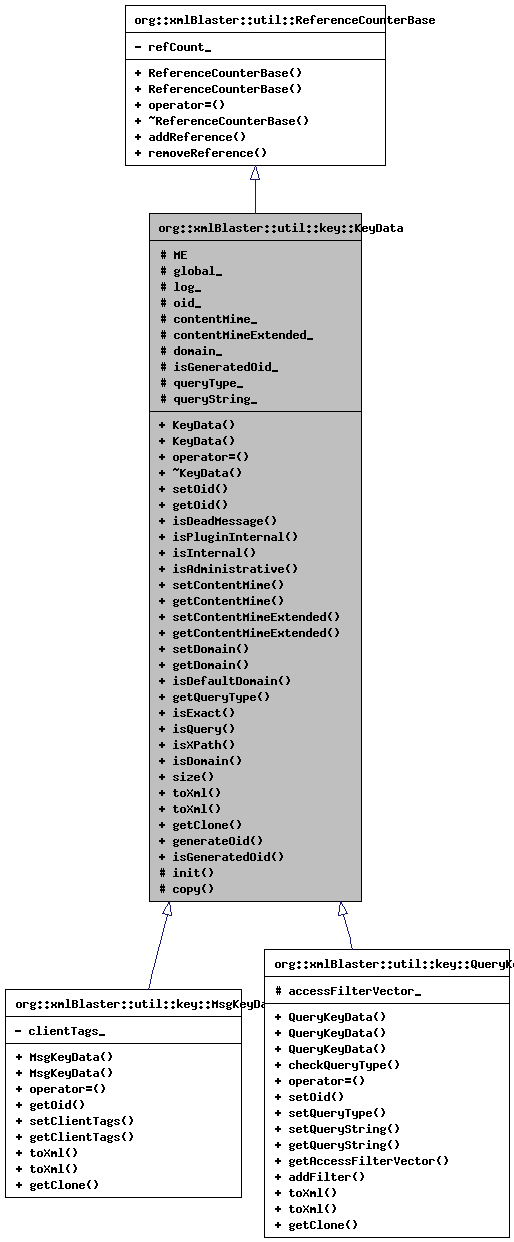

Inheritance diagram for org::xmlBlaster::util::key::KeyData:

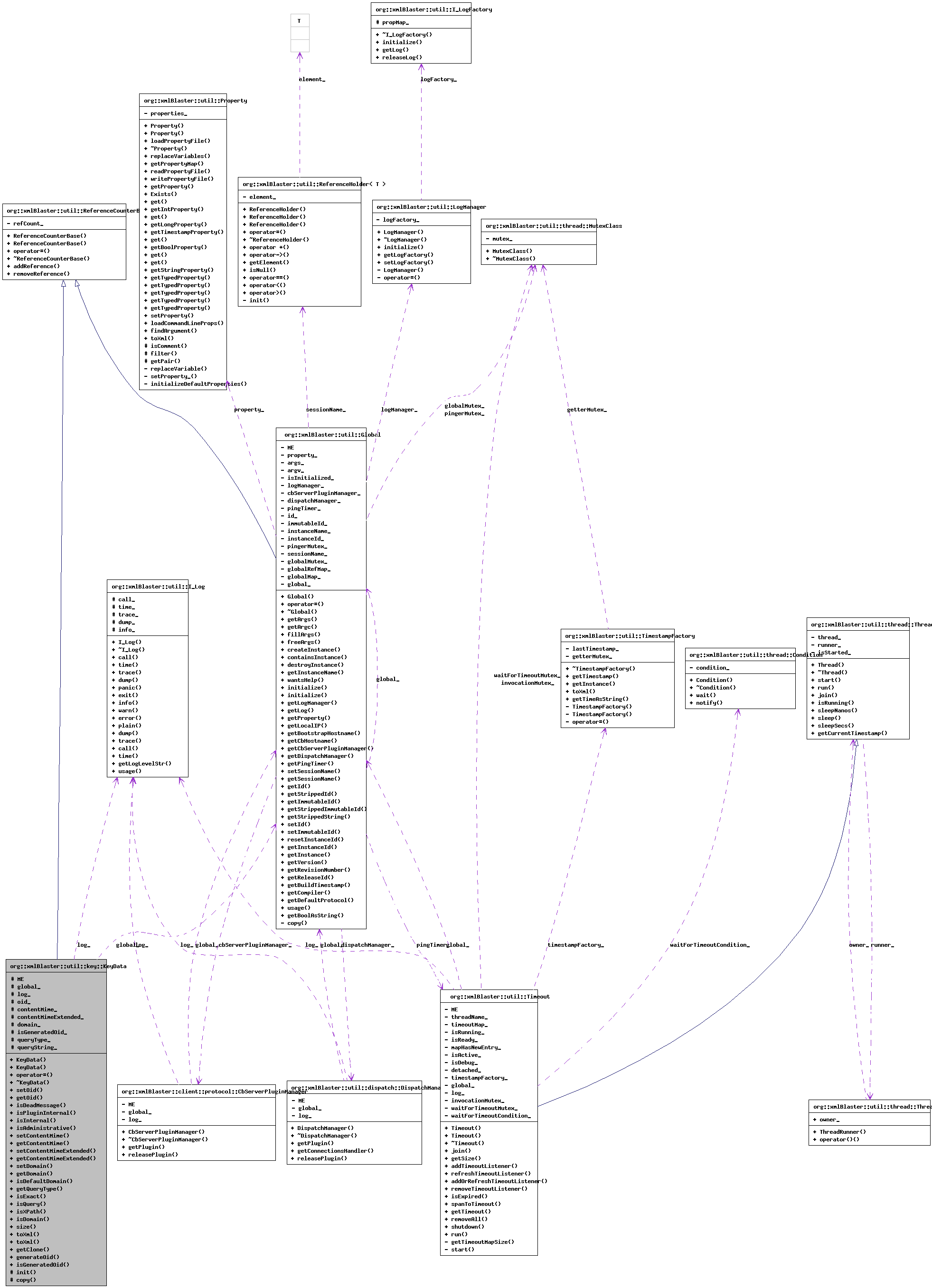

[legend]Collaboration diagram for org::xmlBlaster::util::key::KeyData:

[legend]List of all members.


Public Member Functions
	KeyData (org::xmlBlaster::util::Global &global)
	Minimal constructor.
	KeyData (const KeyData &key)
	Copy constructor.
KeyData &	operator= (const KeyData &key)
	Assignement constructor.
virtual	~KeyData ()
void	setOid (const std::string &oid)
std::string	getOid () const
	Returns: The key oid or null if not set (see org::xmlBlaster::util::key::MsgKeyData.getOid() which generates the oid if it was null).
bool	isDeadMessage () const
	Test if oid is '__sys__deadMessage'.
bool	isPluginInternal () const
	Messages starting with "_" are reserved for usage in plugins.
bool	isInternal () const
	Messages starting with "__" are reserved for internal usage.
bool	isAdministrative () const
	Messages starting with "__cmd:" are administrative messages.
void	setContentMime (const std::string &contentMime)
	Set mime type (syntax) of the message content.
std::string	getContentMime () const
	Find out which mime type (syntax) the content of the message has.
void	setContentMimeExtended (const std::string &contentMimeExtended)
	Some further specifying information of the content.
std::string	getContentMimeExtended () const
	Some further specifying information of the content.
void	setDomain (const std::string &domain)
	Set the domain for this message, can be used for a simple grouping of messages to their master node with xmlBlaster clusters.
std::string	getDomain () const
	Access the domain setting.
bool	isDefaultDomain () const
	Returns: true if no domain is given (null or empty std::string).
std::string	getQueryType () const
	Access the query type "XPATH" or "EXACT".
bool	isExact () const
bool	isQuery () const
bool	isXPath () const
bool	isDomain () const
int	size () const
	The size in bytes of the data in XML form.
virtual std::string	toXml (const std::string &extraOffset) const
	Dump state of this object into a XML ASCII std::string.
virtual std::string	toXml () const
virtual KeyData *	getClone () const
	Allocate a clone, the derived classes need to implement this method.
std::string	generateOid (const std::string &uniquePrefix) const
	Generates a unique key oid in scope of a cluster node (on server or on client side).
bool	isGeneratedOid () const
	Returns: true if the key oid is generated by xmlBlaster
Protected Member Functions
void	init ()
void	copy (const KeyData &key)
Protected Attributes
std::string	ME
org::xmlBlaster::util::Global &	global_
org::xmlBlaster::util::I_Log &	log_
std::string	oid_
	value from attribute <key oid="...">
std::string	contentMime_
	value from attribute <key oid="" contentmime="...">
std::string	contentMimeExtended_
	value from attribute <key oid="" contentmimeextended="...">
std::string	domain_
	value from attribute <key oid="" domain="...">
bool	isGeneratedOid_
	Is the key oid generated?
std::string	queryType_
	The query type.
std::string	queryString_
	The query std::string.

Detailed Description

This class encapsulates the Message meta data and unique identifier (key) of a publish()/update() or get()-return message.

A typical key could look like this:

     <key oid='4711' contentMime='text/xml'>
        <AGENT id='192.168.124.20' subId='1' type='generic'>
           <DRIVER id='FileProof' pollingFreq='10'>
           </DRIVER>
        </AGENT>
     </key>

Note that the AGENT and DRIVER tags are application know how, which you have to supply to the setClientTags() method.
A well designed xml hierarchy of your problem domain is essential for a proper working xmlBlaster

NOTE: Message oid starting with "__" is reserved for internal usage.

NOTE: Message oid starting with "_" is reserved for xmlBlaster plugins.

Definition at line 50 of file KeyData.h.

Constructor & Destructor Documentation

org::xmlBlaster::util::key::KeyData::KeyData ( org::xmlBlaster::util::Global & global )

Minimal constructor.

Definition at line 46 of file KeyData.cpp.

org::xmlBlaster::util::key::KeyData::KeyData ( const KeyData & key )

Copy constructor.

org::xmlBlaster::util::key::KeyData::~KeyData ( ) [virtual]

Definition at line 64 of file KeyData.cpp.

Member Function Documentation

void org::xmlBlaster::util::key::KeyData::init ( ) [protected]

Definition at line 24 of file KeyData.cpp.

References contentMime_, contentMimeExtended_, org::xmlBlaster::util::key::DEFAULT_DOMAIN, domain_, isGeneratedOid_, oid_, queryString_, queryType_, and org::xmlBlaster::util::key::QUERYTYPE_DEFAULT.

void org::xmlBlaster::util::key::KeyData::copy ( const KeyData & key ) [protected]

KeyData& org::xmlBlaster::util::key::KeyData::operator= ( const KeyData & key )

Assignement constructor.

void org::xmlBlaster::util::key::KeyData::setOid ( const std::string & oid )

Reimplemented in org::xmlBlaster::util::key::QueryKeyData.

std::string org::xmlBlaster::util::key::KeyData::getOid ( ) const

Returns:: The key oid or null if not set (see org::xmlBlaster::util::key::MsgKeyData.getOid() which generates the oid if it was null).

Reimplemented in org::xmlBlaster::util::key::MsgKeyData.

Referenced by org::xmlBlaster::util::dispatch::ConnectionsHandler::publish(), and org::xmlBlaster::util::dispatch::ConnectionsHandler::queuePublish().

bool org::xmlBlaster::util::key::KeyData::isDeadMessage ( ) const

Test if oid is '__sys__deadMessage'.

Dead letters are unrecoverable lost messages, usually an administrator should subscribe to those messages.

This is an internal message (isInternal() returns true)

bool org::xmlBlaster::util::key::KeyData::isPluginInternal ( ) const

Messages starting with "_" are reserved for usage in plugins.

bool org::xmlBlaster::util::key::KeyData::isInternal ( ) const

Messages starting with "__" are reserved for internal usage.

bool org::xmlBlaster::util::key::KeyData::isAdministrative ( ) const

Messages starting with "__cmd:" are administrative messages.

void org::xmlBlaster::util::key::KeyData::setContentMime ( const std::string & contentMime )

Set mime type (syntax) of the message content.

Returns:: The MIME type, for example "text/xml" in <key oid='' contentMime='text/xml'>
default is "text/plain" if not set

See also:: RFC1521 - MIME (Multipurpose Internet Mail Extensions)

std::string org::xmlBlaster::util::key::KeyData::getContentMime ( ) const

Find out which mime type (syntax) the content of the message has.

Returns:: The MIME type, for example "text/xml" in <key oid='' contentMime='text/xml'>
default is "text/plain" if not set

See also:: RFC1521 - MIME (Multipurpose Internet Mail Extensions)

Referenced by org::xmlBlaster::test::TestKeys::testPublishKey().

void org::xmlBlaster::util::key::KeyData::setContentMimeExtended ( const std::string & contentMimeExtended )

Some further specifying information of the content.

For example the application version number the document in the content.
You may use this attribute for you own purposes.

Parameters:

The

MIME-extended info, for example
"Version 1.1" in <key oid='' contentMime='text/xml' contentMimeExtended='Version 1.1'>
or "" (empty std::string) if not known

std::string org::xmlBlaster::util::key::KeyData::getContentMimeExtended ( ) const

Some further specifying information of the content.

For example the application version number the document in the content.
You may use this attribute for you own purposes.

Returns:: The MIME-extended info, for example
"Version 1.1" in <key oid='' contentMime='text/xml' contentMimeExtended='Version 1.1'>
or "" (empty std::string) if not known

Referenced by org::xmlBlaster::test::TestKeys::testPublishKey().

void org::xmlBlaster::util::key::KeyData::setDomain ( const std::string & domain )

Set the domain for this message, can be used for a simple grouping of messages to their master node with xmlBlaster clusters.

Parameters:

The

domain, any chosen std::string in your problem domain, e.g. "RUGBY" or "RADAR_TRACK" defaults to "" where the local xmlBlaster instance is the master of the message.
