org::xmlBlaster::client::XmlBlasterAccess Class Reference

This is the main entry point for programmers to the C++ client library. More...

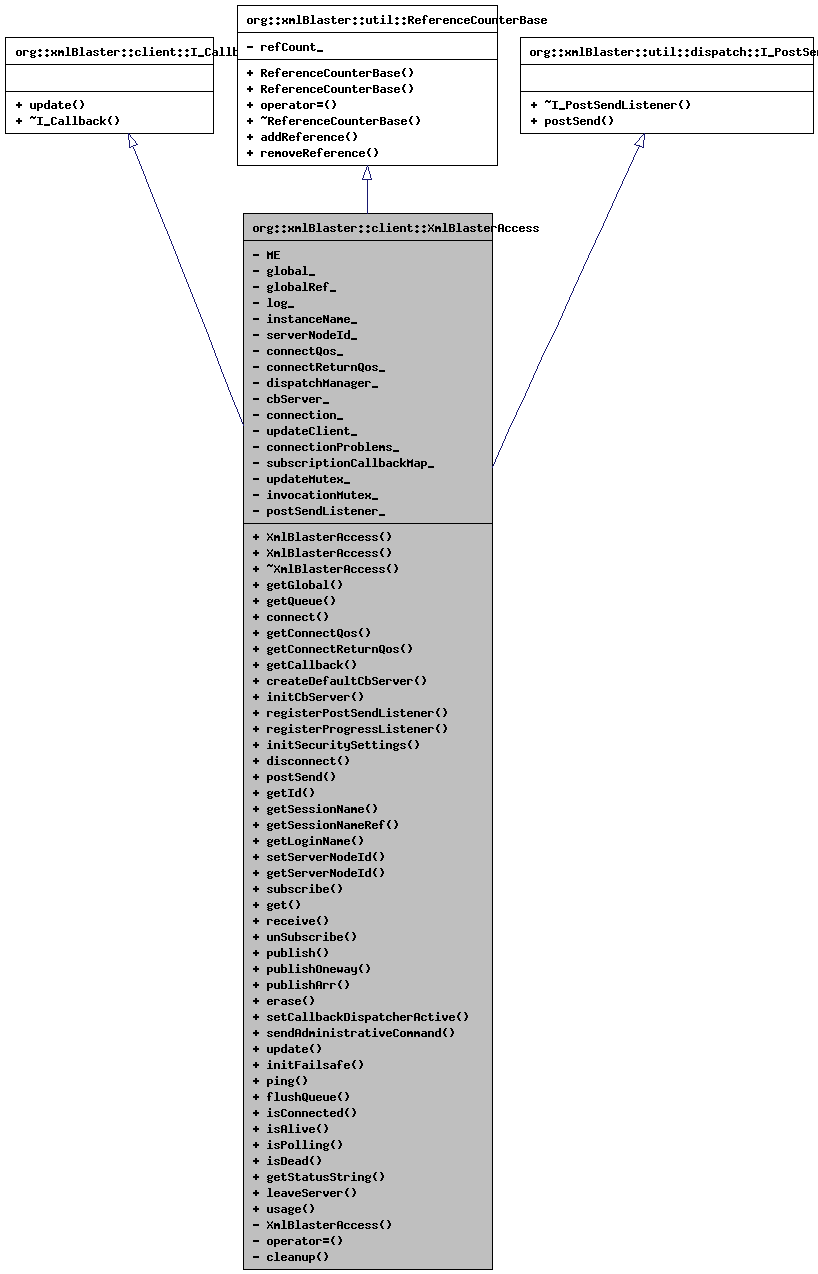

Inheritance diagram for org::xmlBlaster::client::XmlBlasterAccess:

Inheritance graph
[legend]

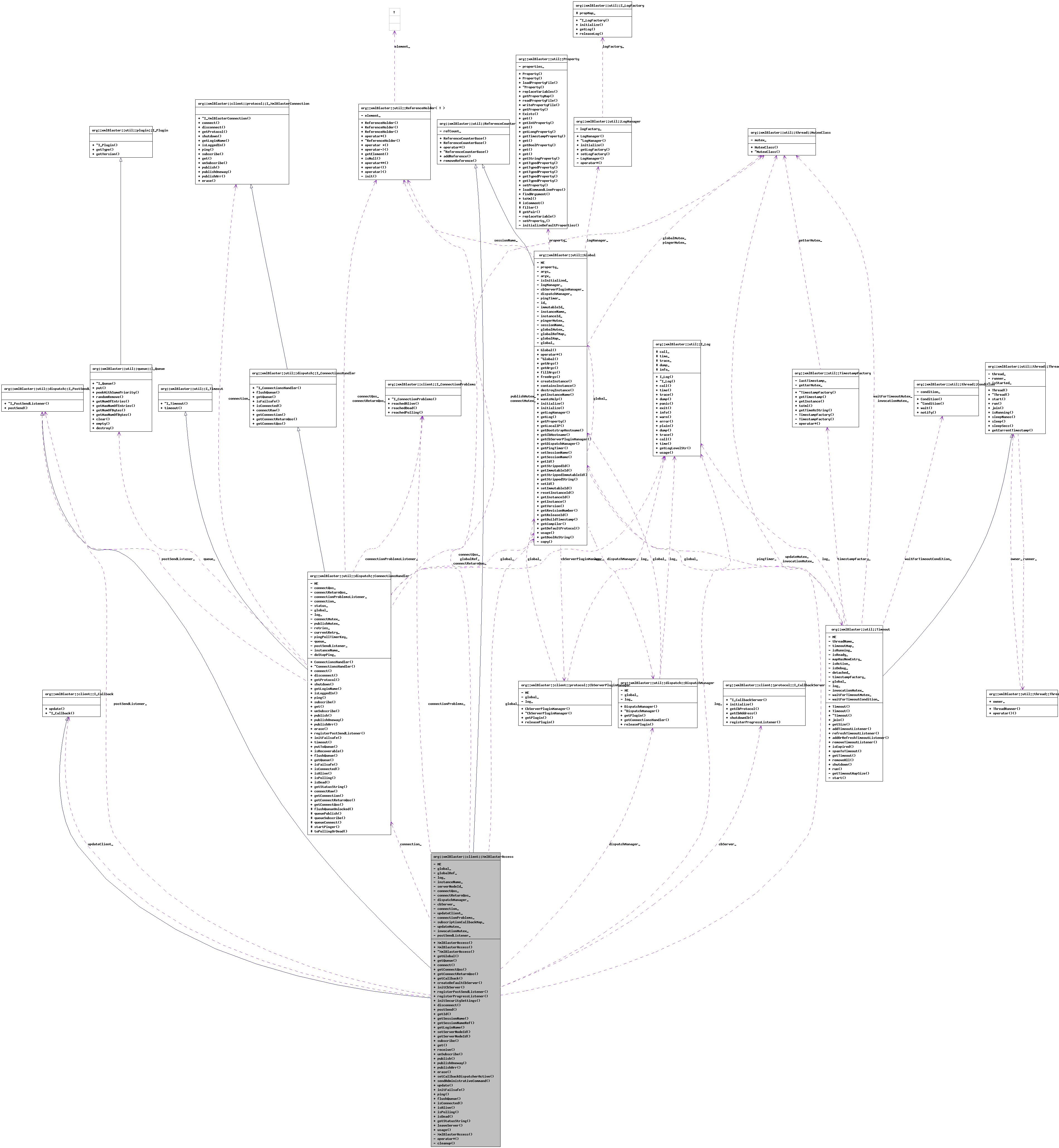

Collaboration diagram for org::xmlBlaster::client::XmlBlasterAccess:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 XmlBlasterAccess (org::xmlBlaster::util::Global &global)
 Create an xmlBlaster accessor.
 XmlBlasterAccess (org::xmlBlaster::util::GlobalRef global)
 Create an xmlBlaster accessor.
virtual ~XmlBlasterAccess ()
org::xmlBlaster::util::GlobalgetGlobal ()
 Access the global handle of this connection.
org::xmlBlaster::util::queue::I_QueuegetQueue ()
 Access the client side queue.
org::xmlBlaster::util::qos::ConnectReturnQos connect (org::xmlBlaster::util::qos::ConnectQos &qos, org::xmlBlaster::client::I_Callback *clientCb)
 Login to xmlBlaster.
org::xmlBlaster::util::qos::ConnectQosRef getConnectQos ()
 Access the current ConnectQos instance.
org::xmlBlaster::util::qos::ConnectReturnQosRef getConnectReturnQos ()
org::xmlBlaster::client::I_CallbackgetCallback ()
 Access the previously with connect() registered callback pointer.
void createDefaultCbServer ()
 Extracts address data from org::xmlBlaster::util::qos::ConnectQos (or adds default if missing) and instantiate a callback server as specified in org::xmlBlaster::util::qos::ConnectQos.
org::xmlBlaster::client::protocol::I_CallbackServerinitCbServer (std::string &loginName, std::string &type, std::string &version)
 Create a new instance of the desired protocol driver like CORBA or RMI driver using the plugin loader.
org::xmlBlaster::util::dispatch::I_PostSendListenerregisterPostSendListener (org::xmlBlaster::util::dispatch::I_PostSendListener *listener)
 Register a listener for to receive information about the progress of incoming data.
org::xmlBlaster::client::protocol::I_ProgressListenerregisterProgressListener (org::xmlBlaster::client::protocol::I_ProgressListener *listener)
 Register a listener for to receive the return Qos of send messages from the client queue.
void initSecuritySettings (std::string &secMechanism, std::string &secVersion)
 Initializes the little client helper framework for authentication.
bool disconnect (org::xmlBlaster::util::qos::DisconnectQos &qos, bool flush=true, bool shutdown=true, bool shutdownCb=true)
 Logout from the server.
void postSend (org::xmlBlaster::util::queue::MsgQueueEntry &msgQueueEntry)
 Enforced by I_PostSendListener.
std::string getId ()
 Create a descriptive ME, for logging only.
std::string getSessionName ()
 The public session ID of this login session.
org::xmlBlaster::util::SessionNameRef getSessionNameRef ()
 Your changes outside change the internal sessionName.
std::string getLoginName ()
 Access the login name.
void setServerNodeId (std::string &nodeId)
 Allows to set the node name for nicer logging.
std::string getServerNodeId ()
 The cluster node id (name) to which we want to connect.
org::xmlBlaster::client::qos::SubscribeReturnQos subscribe (org::xmlBlaster::client::key::SubscribeKey &key, org::xmlBlaster::client::qos::SubscribeQos &qos, I_Callback *callback=0)
 Put the given message entry into the queue.
std::vector< org::xmlBlaster::util::MessageUnitget (org::xmlBlaster::client::key::GetKey &key, org::xmlBlaster::client::qos::GetQos &qos)
std::vector< org::xmlBlaster::util::MessageUnitreceive (std::string oid, int maxEntries, long timeout, bool consumable)
 This method synchronously accesses maxEntries messages from any xmlBlaster server side queue.
std::vector< org::xmlBlaster::client::qos::UnSubscribeReturnQosunSubscribe (org::xmlBlaster::client::key::UnSubscribeKey &key, org::xmlBlaster::client::qos::UnSubscribeQos &qos)
org::xmlBlaster::client::qos::PublishReturnQos publish (org::xmlBlaster::util::MessageUnit &msgUnit)
void publishOneway (std::vector< org::xmlBlaster::util::MessageUnit > &msgUnitArr)
std::vector< org::xmlBlaster::client::qos::PublishReturnQospublishArr (std::vector< org::xmlBlaster::util::MessageUnit > &msgUnitArr)
std::vector< org::xmlBlaster::client::qos::EraseReturnQoserase (org::xmlBlaster::client::key::EraseKey &key, org::xmlBlaster::client::qos::EraseQos &qos)
void setCallbackDispatcherActive (bool isActive)
 Switch callback dispatcher on/off.
std::string sendAdministrativeCommand (std::string &command)
 Convenience method to send an administrative command to xmlBlaster.
std::string update (std::string &sessionId, org::xmlBlaster::client::key::UpdateKey &updateKey, unsigned char *content, long contentSize, org::xmlBlaster::client::qos::UpdateQos &updateQos)
 This is the callback method invoked from xmlBlaster delivering us a new asynchronous message.
void initFailsafe (I_ConnectionProblems *connectionProblems=((void *) 0))
 used to initialize the failsafe behaviour of the client.
std::string ping ()
long flushQueue ()
 Flushes all entries in the queue, i.e.
bool isConnected ()
 Same as isAlive() || isPolling().
bool isAlive ()
 Check if we are 'online'.
bool isPolling ()
 Check if we are polling for the server.
bool isDead ()
 Check if this handle is still useful.
std::string getStatusString ()
 Get connection status string for logging.
void leaveServer (StringMap &map)
 Disconnect and cleanup client side resources but keep our login session on server side.

Static Public Member Functions

static std::string usage ()
 Command line usage.

Detailed Description

This is the main entry point for programmers to the C++ client library.

Exactly one Global instance and one instance of this are a pair which can't be mixed with other instances.

Definition at line 80 of file XmlBlasterAccess.h.


Constructor & Destructor Documentation

org::xmlBlaster::client::XmlBlasterAccess::XmlBlasterAccess ( org::xmlBlaster::util::Global global  )

Create an xmlBlaster accessor.

Parameters:
glob Your environment handle or null to use the default org::xmlBlaster::util::Global.instance()

Definition at line 28 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::parser::ParserFactory::getFactory(), org::xmlBlaster::util::TimestampFactory::getInstance, org::xmlBlaster::util::TimestampFactory::getTimestamp(), org::xmlBlaster::util::parser::ParserFactory::initialize(), and org::xmlBlaster::util::lexical_cast().

org::xmlBlaster::client::XmlBlasterAccess::XmlBlasterAccess ( org::xmlBlaster::util::GlobalRef  global  )

Create an xmlBlaster accessor.

Parameters:
glob Your environment handle or null to use the default org::xmlBlaster::util::Global.instance()

Definition at line 53 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::parser::ParserFactory::getFactory(), org::xmlBlaster::util::TimestampFactory::getInstance, org::xmlBlaster::util::TimestampFactory::getTimestamp(), org::xmlBlaster::util::parser::ParserFactory::initialize(), and org::xmlBlaster::util::lexical_cast().

org::xmlBlaster::client::XmlBlasterAccess::~XmlBlasterAccess (  )  [virtual]

Definition at line 78 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), and org::xmlBlaster::util::I_Log::trace().


Member Function Documentation

org::xmlBlaster::util::Global & org::xmlBlaster::client::XmlBlasterAccess::getGlobal (  )

Access the global handle of this connection.

The returned Global lifetime is limited by XmlBlasterAccess lifetime.

Returns:
The global handle containing the connection specific settings.

Definition at line 168 of file XmlBlasterAccess.cpp.

org::xmlBlaster::util::queue::I_Queue * org::xmlBlaster::client::XmlBlasterAccess::getQueue (  )

Access the client side queue.

Returns:
null if not configured

Definition at line 173 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::getQueue().

Referenced by HelloWorld2::execute().

ConnectReturnQos org::xmlBlaster::client::XmlBlasterAccess::connect ( org::xmlBlaster::util::qos::ConnectQos qos,
org::xmlBlaster::client::I_Callback clientCb
)

Login to xmlBlaster.

Calling multiple times for changed connections should be possible but is not deeply tested.

Parameters:
qos Your configuration desire
client If not null callback messages will be routed to client.update()
Returns:
The returned QOS for this connection

Definition at line 117 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::dispatch::ConnectionsHandler::connect(), createDefaultCbServer(), org::xmlBlaster::util::I_Log::dump(), org::xmlBlaster::util::qos::SessionQosData::getAbsoluteName(), org::xmlBlaster::util::dispatch::DispatchManager::getConnectionsHandler(), org::xmlBlaster::util::Global::getDispatchManager(), getId(), org::xmlBlaster::util::Global::getInstanceId(), org::xmlBlaster::util::Global::getProperty(), org::xmlBlaster::util::qos::ConnectQosData::getSessionQos(), org::xmlBlaster::util::Property::getStringProperty(), org::xmlBlaster::util::dispatch::ConnectionsHandler::initFailsafe(), org::xmlBlaster::util::dispatch::ConnectionsHandler::registerPostSendListener(), org::xmlBlaster::util::Global::setId(), setServerNodeId(), org::xmlBlaster::util::qos::ConnectQosData::toXml(), and org::xmlBlaster::util::I_Log::trace().

Referenced by Leak::checkConnection2(), SubscribeDemo::connect(), PublishDemo::connect(), TestEmptyContent::execute(), HelloWorld2::execute(), org::xmlBlaster::util::EmbeddedServer::isSomeServerResponding(), org::xmlBlaster::test::TestSubXPath::setUp(), org::xmlBlaster::test::TestSub::setUp(), org::xmlBlaster::test::TestRam::setUp(), org::xmlBlaster::test::TestLeaveServer::setUp(), org::xmlBlaster::test::TestGet::setUp(), org::xmlBlaster::test::TestFailsafe::setUp(), org::xmlBlaster::test::TestConnect::setUp(), org::xmlBlaster::test::TestCommand::setUp(), org::xmlBlaster::util::EmbeddedServer::start(), org::xmlBlaster::util::EmbeddedServer::stop(), and org::xmlBlaster::test::TestFailsafe::testReconnect().

org::xmlBlaster::util::qos::ConnectQosRef org::xmlBlaster::client::XmlBlasterAccess::getConnectQos (  )

Access the current ConnectQos instance.

Returns:
A reference on ConnectQos, you don' need to take care on new/delete, just use it. Changes made on the instance are seen in the library as well.

Definition at line 286 of file XmlBlasterAccess.cpp.

org::xmlBlaster::util::qos::ConnectReturnQosRef org::xmlBlaster::client::XmlBlasterAccess::getConnectReturnQos (  )

org::xmlBlaster::client::I_Callback * org::xmlBlaster::client::XmlBlasterAccess::getCallback (  )

Access the previously with connect() registered callback pointer.

Returns:
Can be NULL

Definition at line 182 of file XmlBlasterAccess.cpp.

void org::xmlBlaster::client::XmlBlasterAccess::createDefaultCbServer (  )

Extracts address data from org::xmlBlaster::util::qos::ConnectQos (or adds default if missing) and instantiate a callback server as specified in org::xmlBlaster::util::qos::ConnectQos.

Definition at line 235 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::client::protocol::I_CallbackServer::getCbAddress(), org::xmlBlaster::client::protocol::I_CallbackServer::getCbProtocol(), org::xmlBlaster::util::qos::storage::CbQueueProperty::getCurrentCallbackAddress(), getLoginName(), org::xmlBlaster::util::qos::storage::CbQueueProperty::getSettings(), org::xmlBlaster::util::I_Log::info(), initCbServer(), and org::xmlBlaster::util::I_Log::trace().

Referenced by connect().

org::xmlBlaster::client::protocol::I_CallbackServer* org::xmlBlaster::client::XmlBlasterAccess::initCbServer ( std::string &  loginName,
std::string &  type,
std::string &  version
)

Create a new instance of the desired protocol driver like CORBA or RMI driver using the plugin loader.

Parameters:
type E.g. "IOR" or "SOCKET", if null we use the same protocol as our client access.
version The version of the driver, e.g. "1.0"

Referenced by createDefaultCbServer().

org::xmlBlaster::util::dispatch::I_PostSendListener * org::xmlBlaster::client::XmlBlasterAccess::registerPostSendListener ( org::xmlBlaster::util::dispatch::I_PostSendListener listener  )

Register a listener for to receive information about the progress of incoming data.

Only one listener is supported, the last call overwrites older calls.

Parameters:
listener Your listener, pass 0 to unregister.
Returns:
The previously registered listener or 0

Definition at line 265 of file XmlBlasterAccess.cpp.

Referenced by PublishDemo::connect().

org::xmlBlaster::client::protocol::I_ProgressListener * org::xmlBlaster::client::XmlBlasterAccess::registerProgressListener ( org::xmlBlaster::client::protocol::I_ProgressListener listener  )

Register a listener for to receive the return Qos of send messages from the client queue.

Only one listener is supported, the last call overwrites older calls.

Note: The synchronously send returned QoS are not delivered here as they are returned by the method invocation already:

 PublishReturnQos pubRetQos = con.publish(msgUnit);

Parameters:
listener Your listener, pass 0 to unregister.
Returns:
The previously registered listener or 0

Definition at line 281 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::client::protocol::I_CallbackServer::registerProgressListener().

Referenced by SubscribeDemo::connect().

void org::xmlBlaster::client::XmlBlasterAccess::initSecuritySettings ( std::string &  secMechanism,
std::string &  secVersion
)

Initializes the little client helper framework for authentication.

The first goal is a proper loginQoS xml std::string for authentication.

The second goal is to intercept the messages for encryption (or whatever the plugin supports).

See xmlBlaster.properties, for example:

   Security.Client.DefaultPlugin=gui,1.0
   Security.Client.Plugin[gui][1.0]=org.xmlBlaster.authentication.plugins.gui.ClientSecurityHelper


bool org::xmlBlaster::client::XmlBlasterAccess::disconnect ( org::xmlBlaster::util::qos::DisconnectQos qos,
bool  flush = true,
bool  shutdown = true,
bool  shutdownCb = true
)

Logout from the server.

Depending on your arguments, the callback server is removed as well, releasing all CORBA/RMI/XmlRpc threads. Note that this kills the server ping thread as well (if in failsafe mode)

Parameters:
qos The disconnect quality of service
flush Flushed pending publishOneway() messages if any
shutdown shutdown lowlevel connection as well (e.g. CORBA connection)
shutdownCb shutdown callback server as well (if any was established)
Returns:
true successfully logged out
false failure on logout
See also:
interface.disconnect requirement

Definition at line 332 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::dispatch::ConnectionsHandler::disconnect(), org::xmlBlaster::util::I_Log::dump(), org::xmlBlaster::util::Global::getBoolAsString(), org::xmlBlaster::util::Global::getCbServerPluginManager(), org::xmlBlaster::util::qos::storage::CbQueueProperty::getCurrentCallbackAddress(), org::xmlBlaster::client::protocol::CbServerPluginManager::releasePlugin(), org::xmlBlaster::util::dispatch::ConnectionsHandler::shutdown(), org::xmlBlaster::util::qos::DisconnectQos::toXml(), and org::xmlBlaster::util::I_Log::trace().

Referenced by Leak::checkConnection2(), SubscribeDemo::disconnect_(), TestEmptyContent::execute(), HelloWorld2::execute(), PublishDemo::run(), org::xmlBlaster::test::TestConnect::setUp(), org::xmlBlaster::util::EmbeddedServer::start(), org::xmlBlaster::test::TestSub::tearDown(), org::xmlBlaster::test::TestRam::tearDown(), org::xmlBlaster::test::TestGet::tearDown(), org::xmlBlaster::test::TestFailsafe::tearDown(), org::xmlBlaster::test::TestConnect::tearDown(), org::xmlBlaster::test::TestCommand::tearDown(), and org::xmlBlaster::test::TestFailsafe::testReconnect().

void org::xmlBlaster::client::XmlBlasterAccess::postSend ( org::xmlBlaster::util::queue::MsgQueueEntry msgQueueEntry  )  [virtual]

Enforced by I_PostSendListener.

Implements org::xmlBlaster::util::dispatch::I_PostSendListener.

Definition at line 274 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::I_PostSendListener::postSend().

string org::xmlBlaster::client::XmlBlasterAccess::getId (  )

Create a descriptive ME, for logging only.

Returns:
e.g. "/node/heron/client/joe/3"

Definition at line 367 of file XmlBlasterAccess.cpp.

References getSessionName().

Referenced by connect().

string org::xmlBlaster::client::XmlBlasterAccess::getSessionName (  )

The public session ID of this login session.

Definition at line 378 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::ReferenceHolder< T >::isNull().

Referenced by getId(), and setCallbackDispatcherActive().

SessionNameRef org::xmlBlaster::client::XmlBlasterAccess::getSessionNameRef (  )

Your changes outside change the internal sessionName.

Returns:
A reference counted SessionName.

Definition at line 372 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::ReferenceHolder< T >::isNull().

Referenced by subscribe().

string org::xmlBlaster::client::XmlBlasterAccess::getLoginName (  )

Access the login name.

Returns:
your login name or null if you are not logged in

Definition at line 386 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::XmlBlasterException::toString(), and org::xmlBlaster::util::I_Log::warn().

Referenced by createDefaultCbServer().

void org::xmlBlaster::client::XmlBlasterAccess::setServerNodeId ( std::string &  nodeId  )

Allows to set the node name for nicer logging.

Referenced by connect().

string org::xmlBlaster::client::XmlBlasterAccess::getServerNodeId (  )

The cluster node id (name) to which we want to connect.

Needed only for nicer logging when running in a cluster.
Is configurable with "-server.node.id golan"

Returns:
e.g. "golan", defaults to "xmlBlaster"

Definition at line 403 of file XmlBlasterAccess.cpp.

Referenced by PublishDemo::connect().

SubscribeReturnQos org::xmlBlaster::client::XmlBlasterAccess::subscribe ( org::xmlBlaster::client::key::SubscribeKey key,
org::xmlBlaster::client::qos::SubscribeQos qos,
I_Callback callback = 0
)

Put the given message entry into the queue.

Definition at line 422 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::I_Log::dump(), org::xmlBlaster::client::qos::SubscribeQos::getMultiSubscribe(), getSessionNameRef(), org::xmlBlaster::client::qos::SubscribeReturnQos::getSubscriptionId(), org::xmlBlaster::client::qos::SubscribeQos::hasSubscriptionId(), isConnected(), org::xmlBlaster::util::dispatch::ConnectionsHandler::subscribe(), org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), org::xmlBlaster::client::key::UnSubscribeKey::toXml(), org::xmlBlaster::util::I_Log::trace(), and org::xmlBlaster::util::USER_NOT_CONNECTED.

Referenced by TestEmptyContent::execute(), HelloWorld2::execute(), org::xmlBlaster::test::TestFailsafe::setUp(), SubscribeDemo::subscribe(), org::xmlBlaster::test::TestConnect::testPubSub(), org::xmlBlaster::test::TestFailsafe::testReconnect(), org::xmlBlaster::test::TestSub::testSubscribeSpecificCallback(), and org::xmlBlaster::test::TestSub::testSubscribeXPath().

vector< MessageUnit > org::xmlBlaster::client::XmlBlasterAccess::get ( org::xmlBlaster::client::key::GetKey key,
org::xmlBlaster::client::qos::GetQos qos
)

Definition at line 463 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::I_Log::dump(), org::xmlBlaster::util::dispatch::ConnectionsHandler::get(), isConnected(), org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), org::xmlBlaster::client::key::UnSubscribeKey::toXml(), and org::xmlBlaster::util::USER_NOT_CONNECTED.

Referenced by org::xmlBlaster::test::TestGet::testGet(), org::xmlBlaster::test::TestLeaveServer::testLeaveServer(), org::xmlBlaster::test::TestGet::testMany(), and org::xmlBlaster::test::TestRam::testPublish().

std::vector<org::xmlBlaster::util::MessageUnit> org::xmlBlaster::client::XmlBlasterAccess::receive ( std::string  oid,
int  maxEntries,
long  timeout,
bool  consumable
)

This method synchronously accesses maxEntries messages from any xmlBlaster server side queue.

This is a convenience method which uses get() with a specific Qos.

Important note:
Currently you shouldn't use unlimited timeout==-1 as this could lead to a server side thread leak on client disconnect. As a workaround please use a loop and a timeout of for example 60000 and just ignore returned arrays of length 0.

Parameters:
oid The identifier like "topic/hello" to access a history queue, "client/joe" to access a subject queue or "client/joe/session/1" to access a callback queue. The string must follow the formatting rule of ContextNode.java
maxEntries The maximum number of entries to retrieve
timeout The time to wait until return. If you choose a negative value it will block until the maxEntries has been reached. If the value is '0' (i.e. zero) it will not wait and will correspond to a non-blocking get. If the value is positive it will block until the specified amount in milliseconds has elapsed or when the maxEntries has been reached (whichever comes first).
consumable Expressed with 'true' or 'false'. If true the entries returned are deleted from the queue
Returns:
An array of messages, is never null but may be an array of length=0 if no message is delivered
See also:
org.xmlBlaster.util.context.ContextNode

engine.qos.queryspec.QueueQuery requirement

javax.jms.MessageConsumer::receive

Referenced by HelloWorld2::execute().

vector< UnSubscribeReturnQos > org::xmlBlaster::client::XmlBlasterAccess::unSubscribe ( org::xmlBlaster::client::key::UnSubscribeKey key,
org::xmlBlaster::client::qos::UnSubscribeQos qos
)

Definition at line 507 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::I_Log::dump(), isConnected(), org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), org::xmlBlaster::client::key::UnSubscribeKey::toXml(), org::xmlBlaster::util::I_Log::trace(), org::xmlBlaster::util::dispatch::ConnectionsHandler::unSubscribe(), and org::xmlBlaster::util::USER_NOT_CONNECTED.

Referenced by org::xmlBlaster::test::TestSub::testSubscribeSpecificCallback(), and SubscribeDemo::unSubscribe_().

PublishReturnQos org::xmlBlaster::client::XmlBlasterAccess::publish ( org::xmlBlaster::util::MessageUnit msgUnit  )

Definition at line 531 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::I_Log::dump(), isConnected(), org::xmlBlaster::util::dispatch::ConnectionsHandler::publish(), org::xmlBlaster::util::MessageUnit::toXml(), and org::xmlBlaster::util::USER_NOT_CONNECTED.

Referenced by TestEmptyContent::execute(), HelloWorld2::execute(), PublishDemo::publish(), org::xmlBlaster::util::EmbeddedServer::stop(), org::xmlBlaster::test::TestFailsafe::testFailsafe(), org::xmlBlaster::test::TestGet::testGet(), org::xmlBlaster::test::TestSubXPath::testInitial(), org::xmlBlaster::test::TestSub::testPublishCorbaMethods(), org::xmlBlaster::test::TestSub::testPublishSTLMethods(), org::xmlBlaster::test::TestConnect::testPubSub(), org::xmlBlaster::test::TestFailsafe::testReconnect(), and org::xmlBlaster::test::TestSub::testSubscribeSpecificCallback().

void org::xmlBlaster::client::XmlBlasterAccess::publishOneway ( std::vector< org::xmlBlaster::util::MessageUnit > &  msgUnitArr  )

Referenced by PublishDemo::publish(), org::xmlBlaster::test::TestSub::testPublishCorbaMethods(), and org::xmlBlaster::test::TestSub::testPublishSTLMethods().

std::vector<org::xmlBlaster::client::qos::PublishReturnQos> org::xmlBlaster::client::XmlBlasterAccess::publishArr ( std::vector< org::xmlBlaster::util::MessageUnit > &  msgUnitArr  )

Referenced by org::xmlBlaster::test::TestRam::testPublish(), org::xmlBlaster::test::TestSub::testPublishCorbaMethods(), and org::xmlBlaster::test::TestSub::testPublishSTLMethods().

vector< EraseReturnQos > org::xmlBlaster::client::XmlBlasterAccess::erase ( org::xmlBlaster::client::key::EraseKey key,
org::xmlBlaster::client::qos::EraseQos qos
)

Definition at line 577 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::I_Log::call(), org::xmlBlaster::util::I_Log::dump(), org::xmlBlaster::util::dispatch::ConnectionsHandler::erase(), isConnected(), org::xmlBlaster::client::qos::UnSubscribeQos::toXml(), org::xmlBlaster::client::key::UnSubscribeKey::toXml(), and org::xmlBlaster::util::USER_NOT_CONNECTED.

Referenced by PublishDemo::erase(), TestEmptyContent::execute(), HelloWorld2::execute(), org::xmlBlaster::test::TestSub::tearDown(), org::xmlBlaster::test::TestRam::tearDown(), org::xmlBlaster::test::TestGet::tearDown(), org::xmlBlaster::test::TestFailsafe::tearDown(), org::xmlBlaster::test::TestSubXPath::testInitial(), and org::xmlBlaster::test::TestConnect::testPubSub().

void org::xmlBlaster::client::XmlBlasterAccess::setCallbackDispatcherActive ( bool  isActive  )

Switch callback dispatcher on/off.

This is a convenience function (see ConnectQos). It will update the client side ConnectQos as well so we don't loose the setting on reconnects after server maintenance.

Parameters:
isActive true: XmlBlaster server delivers callback messages false: XmlBlaster server keeps messages for this client in the callback queue

Definition at line 187 of file XmlBlasterAccess.cpp.

References getSessionName(), org::xmlBlaster::util::lexical_cast(), and sendAdministrativeCommand().

Referenced by SubscribeDemo::execute(), and org::xmlBlaster::test::TestCommand::testSetCallbackDispatcherActive().

std::string org::xmlBlaster::client::XmlBlasterAccess::sendAdministrativeCommand ( std::string &  command  )

Convenience method to send an administrative command to xmlBlaster.

If the command contains a '=' it is interpreted as a set() call, else it is used as a get() call.

Parameters:
command for example "client/joe/?dispatcherActive" (a getter) or "client/joe/?dispatcherActive=false" (a setter). The "__cmd:" is added by us To enforce a getter or setter you can write "get client/joe/?dispatcherActive" or "set client/joe/?dispatcherActive=false"
Returns:
When setting a value you get the returned state, else the retrieved data
Exceptions:
XmlBlasterException on problems

Referenced by setCallbackDispatcherActive(), and org::xmlBlaster::test::TestCommand::testSendAdministrativeCommand().

std::string org::xmlBlaster::client::XmlBlasterAccess::update ( std::string &  sessionId,
org::xmlBlaster::client::key::UpdateKey updateKey,
unsigned char *  content,
long  contentSize,
org::xmlBlaster::client::qos::UpdateQos updateQos
) [virtual]

This is the callback method invoked from xmlBlaster delivering us a new asynchronous message.

See also:
org.xmlBlaster.client.I_Callback::update(String, org::xmlBlaster::client::key::UpdateKey, byte[], org::xmlBlaster::client::qos::UpdateQos)

Implements org::xmlBlaster::client::I_Callback.

std::string org::xmlBlaster::client::XmlBlasterAccess::usage (  )  [static]

Command line usage.

Definition at line 629 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::Global::getDefaultProtocol(), org::xmlBlaster::util::Global::getInstance, org::xmlBlaster::util::Global::getProperty(), and org::xmlBlaster::util::Property::getStringProperty().

Referenced by org::xmlBlaster::test::TestRam::usage(), org::xmlBlaster::test::TestKeys::usage(), and org::xmlBlaster::test::TestGet::usage().

void org::xmlBlaster::client::XmlBlasterAccess::initFailsafe ( I_ConnectionProblems connectionProblems = ((void *) 0)  )

used to initialize the failsafe behaviour of the client.

If connectionProblems is not NULL, then the passed object will be notified for connection lost and reconnected events.

Definition at line 644 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::initFailsafe().

Referenced by SubscribeDemo::connect(), TestEmptyContent::execute(), HelloWorld2::execute(), and org::xmlBlaster::test::TestFailsafe::setUp().

string org::xmlBlaster::client::XmlBlasterAccess::ping (  )

Definition at line 650 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::ping().

long org::xmlBlaster::client::XmlBlasterAccess::flushQueue (  )

Flushes all entries in the queue, i.e.

the entries of the queue are sent to xmlBlaster. If the queue is empty or NULL, then 0 is returned. If the state is in POLLING or DEAD, then -1 is returned.. This method blocks until all entries in the queue have been sent.

Definition at line 657 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::flushQueue(), and org::xmlBlaster::util::INTERNAL_NULLPOINTER.

bool org::xmlBlaster::client::XmlBlasterAccess::isConnected (  )

Same as isAlive() || isPolling().

Returns:
true if connect() call was successful, even if we are polling

Definition at line 666 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::isConnected().

Referenced by erase(), get(), leaveServer(), publish(), subscribe(), and unSubscribe().

bool org::xmlBlaster::client::XmlBlasterAccess::isAlive (  )

Check if we are 'online'.

Returns:
true if connected with server and ready

Definition at line 672 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::isAlive().

Referenced by org::xmlBlaster::test::TestFailsafe::testReconnect().

bool org::xmlBlaster::client::XmlBlasterAccess::isPolling (  )

Check if we are polling for the server.

Returns:
true if polling for the server

Definition at line 678 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::isPolling().

bool org::xmlBlaster::client::XmlBlasterAccess::isDead (  )

Check if this handle is still useful.

Returns:
true if we have given up

Definition at line 684 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::isDead().

std::string org::xmlBlaster::client::XmlBlasterAccess::getStatusString (  )

Get connection status string for logging.

Returns:
"ALIVE" | "POLLING" | "DEAD"

Definition at line 691 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::dispatch::ConnectionsHandler::getStatusString().

void org::xmlBlaster::client::XmlBlasterAccess::leaveServer ( StringMap map  )

Disconnect and cleanup client side resources but keep our login session on server side.

As the login session on server side stays alive, all subscriptions stay valid and callback messages are queued by the server. If you connect at a later time the server sends us all queued messages.

Once you have called this method the XmlBlasterAccess instance becomes invalid and any further invocation results in an XmlBlasterException to be thrown.

Parameters:
map The properties to pass while leaving server. Currently this argument has no effect.

Definition at line 299 of file XmlBlasterAccess.cpp.

References org::xmlBlaster::util::Global::getCbServerPluginManager(), org::xmlBlaster::util::qos::storage::CbQueueProperty::getCurrentCallbackAddress(), org::xmlBlaster::util::I_Log::info(), isConnected(), org::xmlBlaster::client::protocol::CbServerPluginManager::releasePlugin(), org::xmlBlaster::util::dispatch::ConnectionsHandler::shutdown(), org::xmlBlaster::client::protocol::I_CallbackServer::shutdownCb(), org::xmlBlaster::util::I_Log::trace(), and org::xmlBlaster::util::USER_NOT_CONNECTED.

Referenced by org::xmlBlaster::test::TestLeaveServer::testLeaveServer().


The documentation for this class was generated from the following files:
